SMS Flat X WH 1105 VC - Dual Wallmount with 1105mm pillar, VESA 200x200-800x400, Max 35kg/display - Vägg
Specifikation
- VESA200 x 200 - 800 x 400
- Max-vikt 35 kg
- Mått 0 x 0 x 0 mm
- Vikt 20 kg

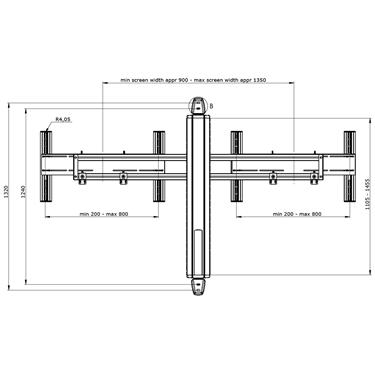

Beskrivning:SMS X WH VC - A double-sized distance conference on the wall.New, updated model that can be used with more screen sizes. Our wall-mounted videoconference system, with space for double screens and a top-mounted video camera, can now accommodate screens of dimension 40-46” (depending on VESA and the weight ofthe screens). In addition, it is now easier to make fine adjustments of the screens during installation. The camera shelf and its bracket are ordered separately. The system can be fitted with electrical power sockets (ordered separately) and it is easy to add shelves and cabinets for DVDs and other peripherals, depending on the column length selected.The X series is characterised by clean and refined features. The cable holder, for example, into which it is easy to place all cables by hand. The surface finish has also been given extra attention.INFO● Finish: A/W (Aluminium/white).● Maximum load: 35 kg/screen.● Length (column): 1105 or 1455 mm.● Suitable for VESA standards: 200 x 200-800 x 400 mm.● The minimum width of the screen is 900 mm, and its maximum width is 1350 mm. Produktinformationen kopierad från Exertis AB.● The recommended screen size, taking the weight of the screen and its hole pattern into consideration, is: 40-46”.VERSIONS:● PD081010-P0 - SMS Flatscreen X WH 1105 Video Conference● PD081011-P0 - SMS Flatscreen X WH 1455 Video ConferenceACCESSORIES:● PD100001 - SMS Power Socket EU● PD100002 - SMS Power Socket CH● PD100003 - SMS Power Socket UK● PD300005-PO - SMS X Shelf White*● PD300006-P0 - SMS X Shelf Oak*● PD300007-P0 - SMS X Shelf Walnut*● PD300010-P0 - SMS X Conference Camera Shelf*● PD300011-P0 - SMS X Conference Codec/Camera Shelf*● PD300012-P0 - SMS X Conference Camera Shelf Wall*● PD300013-P0 - SMS X Conference Codec Shelf Wall*● PD400001 - SMS X Media Box White*● PD400003 - SMS X Media Box Oak*● PD400004 - SMS X Media Box Walnut*● PD410001 - SMS X Media Box Rack Accessory*● PD400022 - SMS X Codec Holder White**More information is available in a separate product sheet.Specifikationer:
| Weight capacity (kg) | 35kg/screen |
| VESA mount interface (mm) | 200 x 200mm - 800 x 400mm |
| Number of displays supported | 2 |
| Mounting orientation | Landscape |
| Height adjustment (mm) | Yes |
| Pan/Rotate (°) | Yes - depend on screen size |
| Distance from wall (mm) | Approx 190 mm |
| Pillar lenght (mm) | 1105 mm |
| Material | Aluminium |
| Product Color | Aluminium, White |
| Warranty terms | 5 years |
| Recommended displ. size | Approx 40-46" |
