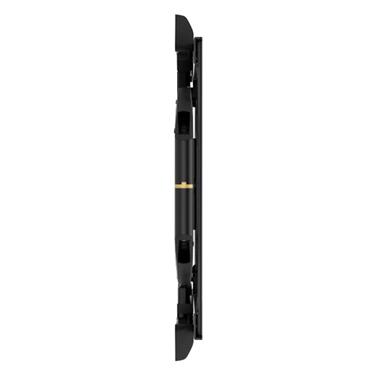

CHIEF TS318TU - Medium THINSTALL, Dual Swing Arm Mount, VESA 100x100-600x400, Max 34kg - Vägg
Specifikation
- VESA100 x 100 - 600 x 400
- Max-vikt 34 kg
- Mått 66 x 61.5 x 7.6 mm
- Vikt 11.124 kg
Beskrivning:A lightweight, low-profile full-motion wall display mount for TVs 26-52". Easily installs with one person by mounting the top rail and sliding on the assembly. Note! In-wall installation available when TA501 purchased with mount.Key Features:• Ultra Low Profile Sleek design collapses to 1.8" (46 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma• Extends up to 18" (457 mm) Full extension maximizes viewing potential• Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles• Centerless™ Lateral Shift Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability• Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation• Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment Specifikationer:
| Weight capacity (kg) | 34 kg |
| VESA mount interface (mm) | 100 x 100 mm - 600 x 400 mm |
| Mounting orientation | Ja, med TA410 Portrait adapter |
| Height adjustment (mm) | Ja, 25mm |
| Sideways adjustment (mm) | Ja, 406 mm |
| Pan/Rotate (°) | Ja |
| Distance from wall (mm) | 46 mm (min), 457,2 mm (max) |
| Product Color | Svart |
| Övrigt | Max skärmtjocklek: 127mm |
| Tilt adjusment | Ja, 15° max |
| Packed weight (kg) | 12,36 kg |
| Number of screens | 1 st |
| Recommended displ. size | 26" - 52" |
