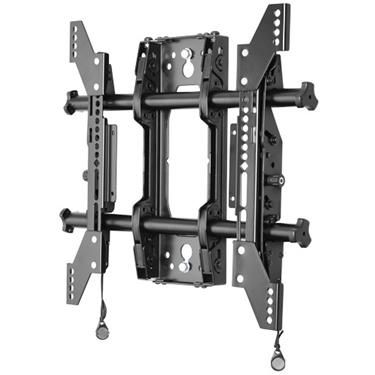

CHIEF MTMS1U - Medium Fusion Tiltable single-stud Wallmount, VESA 200x200-450x400mm, Max 34kg, Black - Vägg
Specifikation
- VESA200 x 200 - 450 x 400
- Max-vikt 34 kg
- Mått 51 x 50 x 7.5 mm
- Vikt 7.3 kg
Beskrivning:Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution. This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-47" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching. Key Features:• Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile• Tilt can be locked at 0°, -6° or -12° • ControlZone leveling allows post-installation fine-tuning of height and leveling • ClickConnect offers an audible click when the display safely engages with the mount• Post-installation lateral positioning • Set screws keep the mount rigid, stable and secure throughout the life of the installation • Exclusive nesting spacers can be stacked to achieve any depth• Quick-Store Cords use magnets to easily store and access pull cords• Integrated Security• Ships with a custom hardware kit that can be hung from mount rails if installing in stages• Easy Open box with less waste to throw away Specifikationer:
| Weight capacity (kg) | 34 kg |
| VESA mount interface (mm) | 200x 200 - 450 x 400 mm |
| Mounting orientation | Ja, både Landscape och Portrait |
| Height adjustment (mm) | 25 mm |
| Pan/Rotate (°) | Nej |
| Distance from wall (mm) | 51 mm |
| Product Color | Svart |
| Product dimensions (mm) | 359 x 463 x 51 mm |
| Tilt adjusment | +2°, -12° |
| Number of screens | 1 st |
| Recommended displ. size | 32-47" |
