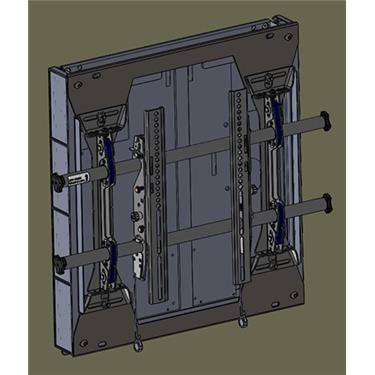

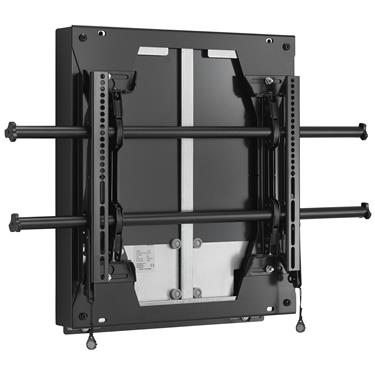

CHIEF LSD1U - Manual Height adjustable wallmount, VESA 200x200-800x400, Max 57-80kg, Black - Vägg

Specifikation
  • VESA200 x 200 - 800 x 400
  • Max-vikt 80 kg
  • Mått 101.6 x 76.2 x 20.3 mm
  • Vikt 10.8 kg

Beskrivning:Chief LSD1U - Large Fusion Dynamic Height Adjustable Wall MountIdeal for interactive applications, Fusion mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides ultra-smooth and fast vertical travel with almost no effort. Ships fully assembled with the LSM1U mount to make this a complete aesthetic solution, Easy to install. Easy to adjust.KEY FEATURES:● Height adjustable box allows up to 400 mm of vertical adjustment instantly● ControlZone for post-installation fine-tuning of height and leveling● Set screws keep the mount rigid, stable and secure throughout the life of the installation● Built in cable stand provides easy access under the screen● ClickConnect offers an audible click when the screen safely engages with the mount● A full line of accessories can be installed with the mount and the entire unit can be adjusted together● Spring system tested to 60,000 cycles and 10 years of use● Integrated security flagSPECIFICATIONS:● Certifications - UL Listed● Color - Black● Dynamic Height Adjustment - 400 mm● Mounting Pattern Compatibility (Universal Versions) - 200 x 200 - 800 x 400 mm● Number Of Monitors - 1● Overall Dimensions (H x W x D) - 635 x 884 x 130 mm● Solution Type - Universal● Wall Stud Compatibility In - 406 mm● Weight Capacity - 57 - 80 kg● Orientation - LandscapeACCESSORIES:● Camera Shelves─ FCA800 - Fusion 8" Above/Below Shelf for Large Displays─ FCA801 - Fusion 14" Above/Below Shelf for Large Displays─ FCA870 - Fusion Stackable Component Shelf● CPU Accessories─ FCA112 - Fusion Secure CPU/Media Player Adapter● Fusion─ FCA106 - Fusion Side Cover Accessory● Speaker Adapters─ FCA830 - Fusion Center Channel Speaker, Large Displays─ FCA831 - Fusion Side Channel Speaker Adaptor Specifikationer:

Weight capacity (kg)57-80kg (Including accessoires)
VESA mount interface (mm)200 x 200 - 800 x 400 mm
Mounting orientationLandscape Only
Height adjustment (mm)Yes - 400mm
Product ColorBlack
Product dimensions (mm)884 x 635 x 130mm (WxHxD)
Number of screens1 st
