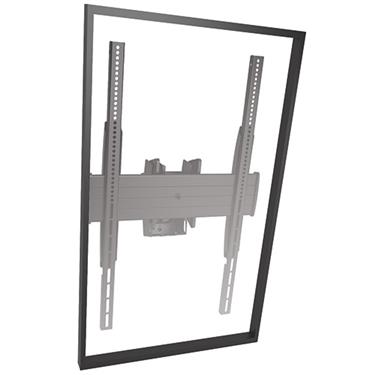

CHIEF LCM1UP - Large Fusion, Portrait, Tiltable Ceilingmount, 200x100 - 460x800mm, Max 56,7kg, Black - Tak
Specifikation

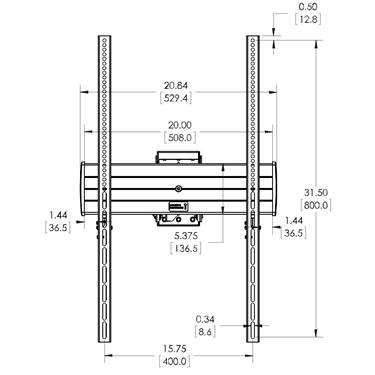

- VESA200 x 200 - 400 x 800
- Max-vikt 56.7 kg
- Mått 93.9 x 60.9 x 22.8 mm
- Vikt 10.614 kg
Beskrivning:Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.Note! Ceiling Plate and extension column are required and must be ordered separately Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility See CPA ceiling plates and CPA columns for pin connection compatibilityKey Features:· REPEATABILITY - Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens. Informationen kommer från Exertis AB.· ACCESSIBILITY - Simple on/off connection for ease of installation and service.· CENTRIS® FINGERTIP TILT - Effortlessly adjust display using Centris fingertip tilt technology.· SIMPLE & SECURE - Tool free screen engagement with optional padlock security.· FLEXIBILITY - Mount swivels to any preferred viewing angle.· PORTRAIT - FUSION™ rail is 400mm wide and the TV uprights reach patterns up to 800mm tall· TAA Compliant Specifikationer:
| Weight capacity (kg) | 56,7 kg |
| VESA mount interface (mm) | 200 x 200mm - 400 x 800mm |
| Mounting orientation | Portrait Only |
| Height adjustment (mm) | Yes, depending on extension pipe |
| Sideways adjustment (mm) | No |
| Pan/Rotate (°) | Yes, depending on extension pipe |
| Pillar lenght (mm) | Depending on extension pipe, extension pipe is not included |
| Lock/Security function | Yes |
| Product Color | Black |
| Tilt adjusment | + 5° , - 20° |
| Packed weight (kg) | 11,79 kg |
| Number of screens | 1 |
| Recommended displ. size | about 32 - 65" |
