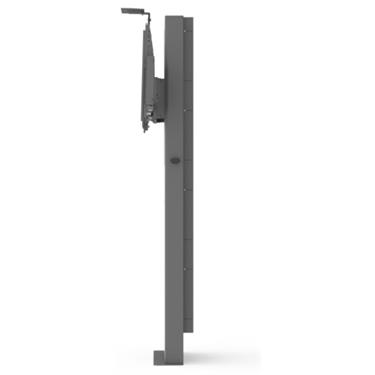

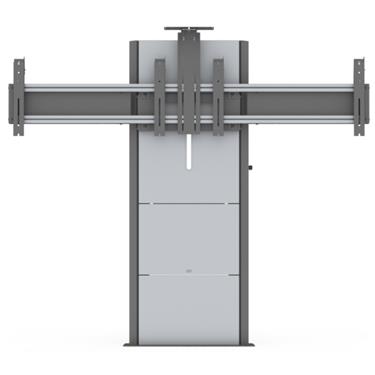

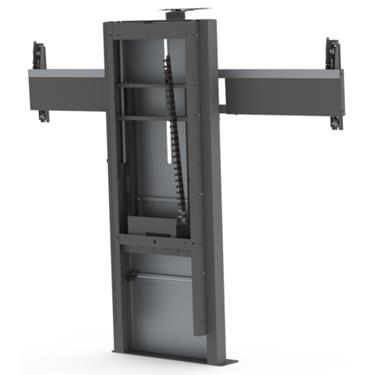

SMS Presence W/F VC Motorized - For Dual-Screens, VESA 200x100-800x400, Max 2x60kg, Grey - Golv

Specifikation
  • VESA200 x 100 - 800 x 400
  • Max-vikt 60 kg
  • Mått 210 x 110 x 35 mm
  • Vikt 71.2 kg

Beskrivning:SMS PRESENCE WALL/FLOOR VC MOTORIZED - Smooth and stylish access for everyone.Now updated to carry displays up to 120kg.Do you need to mount large and heavy displays or touch sensitive displays on a regular wall? With a quick, easy and stylish installation too? SMS Presence Wall/Floor VC Motorized takes your videoconferencing to a new level.SMS Presence Wall/Floor VC Motorized combines our unique Presence solution which completely hides cables and peripherals inside the body of the stand, with a smart design that shifts the weight to the floor.Everyone can reachThis ensures that the stand itself uses very little floor space and you can mount very heavy displays on a regular wall.It doesn’t matter if the user is very tall, a child or wheel chair carried, everyone can reach thanks to the soft motorized height adjustment. The motorized height adjustment is readily available from a button at the side of the unit, behind the displays, and works for most markets (both 110 and 230 V).Fine adjustment possibilities allows for edge-to-edge mounting of displays. The displays can be locked with the accompanying locking screw for personal safety, or with a padlock (not included) which provides increased protection from theft. The design is protected.KEY FEATURES:● Perfect for large and heavy displays, or touch displays up to 2x60 kg.● Quick and easy installation thanks to accurate pre-assembly.● Stylish look of the installation, all cables and peripherals hidden inside.● Max VESA 800 x 400 mm**For larger VESA see accessories. Denna text kommer från www.exertis.se.AVALIBLE VERSIONS:● C591U006-2C0 - SMS Presence W/F Motor VC 120 800x400 EU● C591U006-2D0 - SMS Presence W/F Motor VC 120 800X400 US● C591U006-2E0 - SMS Presence W/F Motor VC 120 800x400 UKSPECIFICATIONS:● Finish - Aluminium/Antracite Grey● Maximum display weight - 2x60 kg● Horizontal VESA - 200 - 800 mm● Vertical VESA - 100 - 400 mm● Max width display - see template in technical drawing (page 2)● Security - The display can be locked with a locking screw (included) or padlock (not included) to increase personal safety and security from theft.● Stroke length - 500 mm● Recommended display size - from appr. 46” and up● Extensively pre-assembled for easy installation.● Motorized up and down travel (100 VAC - 240 VAC, 50/60 Hz)● Dedicated area for cables and peripherals inside stand - 550 (W) x 380 (H) x 132 mm (D)● Protected design.● Patented height-adjustment system● Max screen width in mm with Vesa:─ Vesa 800x400 W=1130─ Vesa 600x400 W=1330─ Vesa 400x400 W=1530─ Vesa 300x300 W=1630WARRANTY:● 2-yearsACCESSORIES:● PR100001 - SMS Presence Camera Shelf● PR100002-P0 - SMS Presence Shelf● PR210201 - SMS Presence VESA Bars 600● PR210100 - SMS Presence VESA Adapter 1100x600● AE018002 - SMS Remote Control Kit● C5-21U004-2-A - SMS Presence W/F Tower Box Perforated● PR400001 - SMS Presence Media Box Glass● PR400003 - SMS Presence Media Box Perforated Specifikationer:

Weight capacity (kg)2x60 kg (60kg per screen)
VESA mount interface (mm)200x100 - 800x400 (Larger VESA with acceissories)
Mounting orientationLandscape
Height adjustment (mm)Yes - 500mm (Motorized)
Pillar lenght (mm)1210 - 1710 mm (approx screen center, depends on VESA placement), 1735 mm
Product ColorAluminium/Anthracite Grey
Warranty terms2 year warranty
Number of screens2
Recommended displ. sizeFrom 46" and up
Mobil/HjulNo
