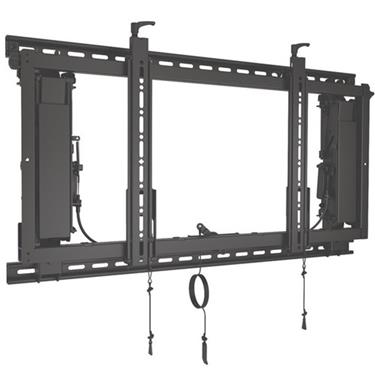

CHIEF LVS1U - ConnexSys Landscape Videowall mount with Rails 200x100 - 700x400mm Max 68kg - Videovägg

  • VESA200 x 100 - 700 x 400
  • Max-vikt 68 kg
  • Mått 102 x 56.5 x 11 mm
  • Vikt 15.1 kg

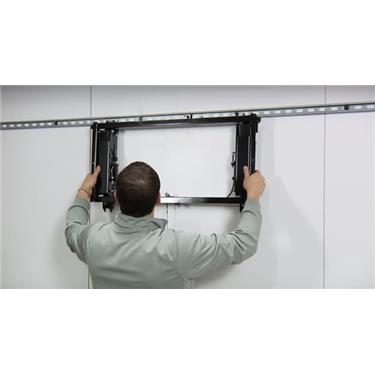

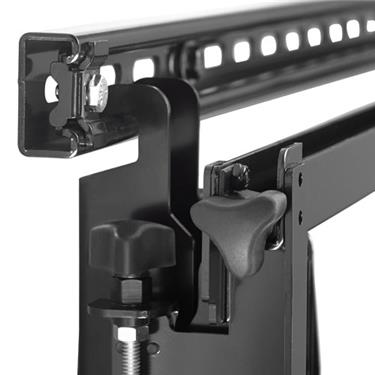

Beskrivning:Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements The LVS1U ConnexSys Video Wall system landscape mount ships with rails for each mount.Key Features:SPEED • Hang units on a single strut channel for quick row leveling ◦ No need for horizontal spacers◦ Vertical measurement is simply the height of the display to the next rail◦ Compatible with most 1-5/8" sizes of channel strut• Reduces installation time - especially for XL and recessed configurations• Tool-free ClickConnect™ latching secures displays• PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mountALIGNMENT• PowerZone™ Adjustments◦ Height adjustment ± 25,4 mm on each interface◦ Tilt adjustment at single pivot point, protects displays from twisting◦ Depth can be set between 101,6 mm and 187,96 mm from the wall, providing a range of "home positions" ideal for recessed installations - Both sides adjust independently, compensating for imperfections in the wall- Walls can be out of alignment by up to 50,8 mm (horizontally)◦ 3 levels of lateral adjustment1. Denna text kommer från Exertis AB. Mount left/right along rail2. Interface left/right along mount3. Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisionsSERVICEABILITY• RapidDraw™ Display Release◦ Cord release system gently and remotely pops any screen out for easy access and can be extended 340,4 mm for service◦ Protects displays by not requiring an aggressive push to release/pop-out◦ Releases only on demand, preventing accidental pop-outs◦ The 304.8 cm cord can be set up to pull for release from any 90 degree angle• Kickstand provides 20 degrees of bottom tilt accessRIGIDITY• Rigid frame keeps displays where you set them, even after extending for service• Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushesMISCELLANEOUS• Security - pad lock 6,35 mm shank diameter• Safety tested• Universal interface• Each mount comes out of the box with adjustments set in the exact same position Specifikationer:

Weight capacity (kg)68
VESA mount interface (mm)200 x 100 - 700 x 400 mm
Number of displays supported1
Mounting orientationLandscape
Height adjustment (mm)± 2,54mm
Distance from wall (mm)101,4 mm (min)
Lock/Security functionYes, with Padlock (option)
Product ColorBlack
Product dimensions (mm)531 x 903 x 101
Tilt adjusment+ 4.0°, -2.5°
