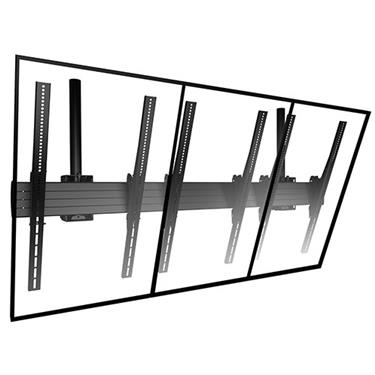

CHIEF LCM3X1UP - Large, Fusion, 3x1 Portrait ceiling menuboard - Videovägg
Specifikation
- VESA100 x 100 - 800 x 800
- Max-vikt 56.7 kg
- Mått 278.13 x 33.02 x 30.48 mm
- Vikt 25.31 kg
Beskrivning:Chief's Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations. Screen array configuration: screens wide x screens high. Confirm screen compatibility with MountFinder™, see weblink below.Key Features:• Single horizontal extrusion keeps screens aligned• Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees• Tool-free screen engagement• Secure displays with optional pad-lock security • Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65• CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately ◦ Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems◦ See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility◦ See CPA ceiling plates and CPA columns for pin connection compatibility• Recommended ceiling plates for multi-display ceiling mounts (see PDF below)• TAA Compliant Specifikationer:
| Weight capacity (kg) | 56,7 kg |
| VESA mount interface (mm) | Obegränsad bredd x 100 - 800 mm höjd |
| Mounting orientation | Ja, enbart för Pivot |
| Height adjustment (mm) | Nej |
| Sideways adjustment (mm) | Nej |
| Pan/Rotate (°) | Nej |
| Lock/Security function | Ja, med hänglås (tillbehör) |
| Product Color | svart |
| Tilt adjusment | + 5° , - 20° |
| Packed weight (kg) | 28.12 kg |
| Number of screens | 3 st |
| Recommended displ. size | 40" - 55" (upp till 65" med FCAX extension brackets) |
